PRODUCTS

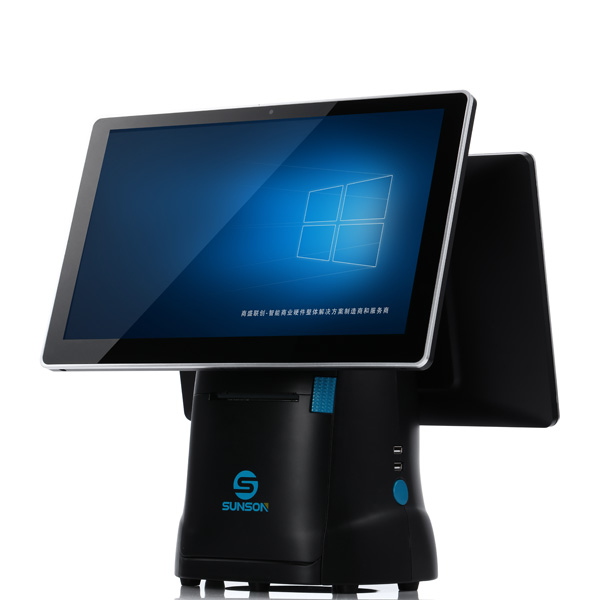

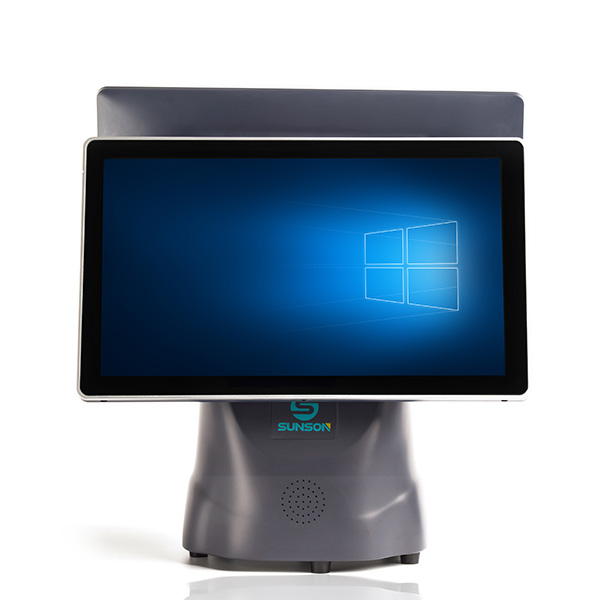

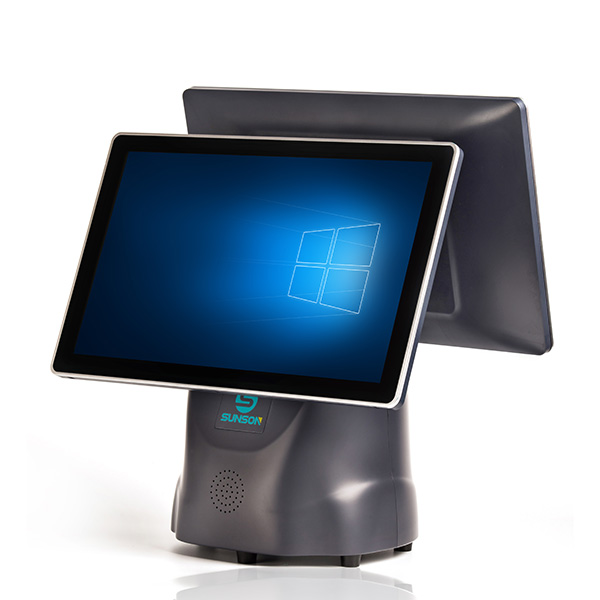

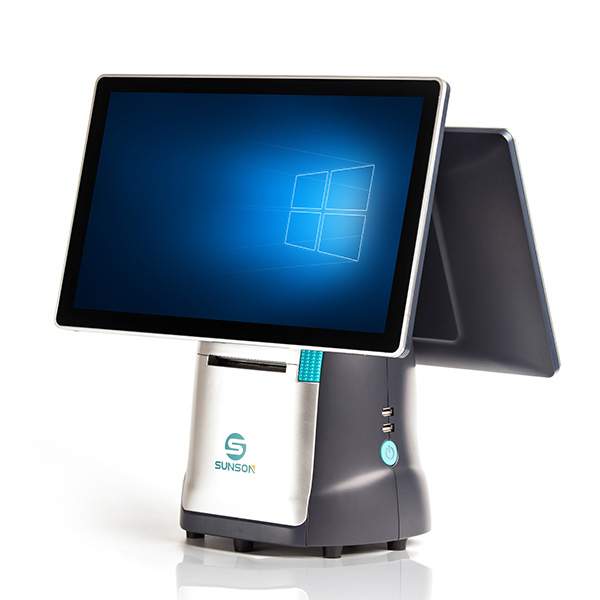

All-In-One Integrated Design
OS Chosen Freely
Built-In 80mm High Speed Thermal Printer
Face-Scanning Payment With HD Camera
Multiple Interfaces Configuration
Built-In 2D Scanning Module
1. All-in-one integrated design, modular product design
2. Windows or Android OS chosen freely, creating a unique interactive experience for you
3. Built-in drawer-type structure 80mm high speed printer with auto cutter, break down the tradition and bring forth the fresh
4. Face-scanning payment with HD camera, market leading & discerning
5. Multiple interfaces configuration,meet your usage needs
6. Built-in 2D scanning module, easy for cashier, convenient and efficient
| Item # | SP01C | |
| Mother Board | Industrial grade motherboard J1800 (Upgrade optional for J1900 / i3 / i5 ) | |
| CPU | Intel celeron J1800 dual-core 2.41GHZ (Upgrade optional for CPU J1900 / i3 / i5) | |
| OS | Android / Windows | |
| Memory | Android: 2G/4G/8G | |
| Windows: DDR3 2G/4G/8G | ||
| Hard Disk | SSD 32GB/64GB/128GB/256GB | |
| Touch Screen | Capacitive touch screen | |
| Display Screen | Double touch screen, 15.6 inch + 15.6 inch | |
| Customer Display | 15.6 inch touch screen | |
| Resolution Ratio | 1366*768 / 1920*1080 | |
| Printer | Type | Built-in 80mm thermal printer with auto cutter |
| Print Speed | 300mm/s | |
| Paper Width | 80mm | |
| Paper roll size | 80×100mm | |
| Color | Black/White/Grey | |
| Scanning（Optional） | Built-in 2D scanning modular | |
| Power Supply | Input: 110-240V，AC/50-60Hz/1.5A | |
| Output: 24V,4A | ||
| Interface | 6×USB | |
| 1× RJ45 LAN | ||
| 1×RS232 COM | ||
| 1×RJ11 Cash drawer port | ||
| 1×DC port | ||
| 1× Audio output | ||
| Work Environment | 0℃~40℃ | |
| Storage Environment | -20℃~60℃ | |
| Size | L×W×H: 38.9×18×41.5cm | |
| Weight | 9.0KG | |
We will contact you as soon as possible!
1. Metal housing2. Metal front panel3. Adjustable coin and bill dividers4. Removable coin tray5. 3-position drawer Lock6. Micro Switch / Sensor7. Compulsory Switch
1. High environmental adaptability2. Support 10 / 100m ethernet port and wifi/3G/4G3. A variety of encryption methods4. Simple setting methods，easy to use
1. Adopt high grade quality print head, printing clearly2. Fast printing speed3.
1. Powerfull performance,with auto cutter and paper out detection2. Easy paper loading design, easy to use3. Multiple connections : USB,Serial, Ethernet interface three in one4.250mm/s high printing speed5.Large cache6.Support multi language options
1、All in one integrated design2、58mm / 80mm inbuilt high speed thermal printer3、Support Windows /Android OS4、Operate display: 15.6”+15.6" LED Touch Screen5、Built-in high-power speakers6、Steady scale body，compatible with all the POS software
1、All in one integrated design2、58mm / 80mm inbuilt high speed thermal printer3、Support Windows /Android OS4、Operate display: 15.6”+11.6“ LED touch screen
