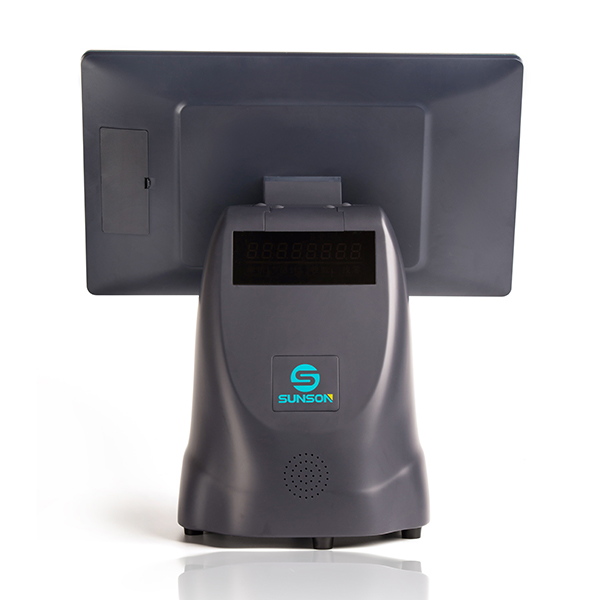

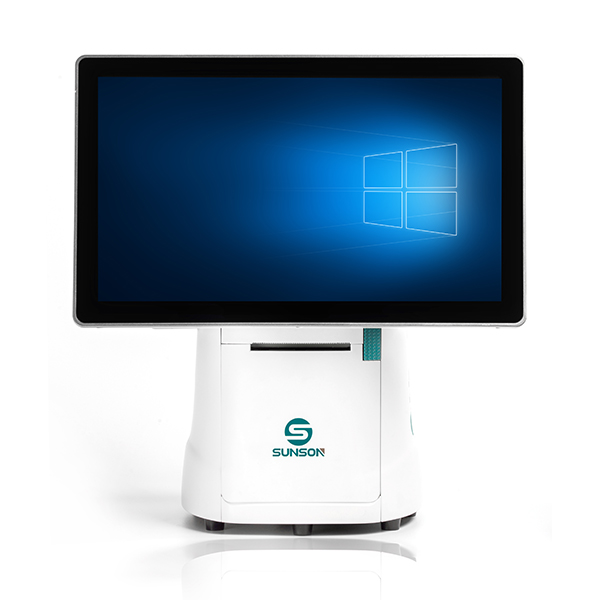

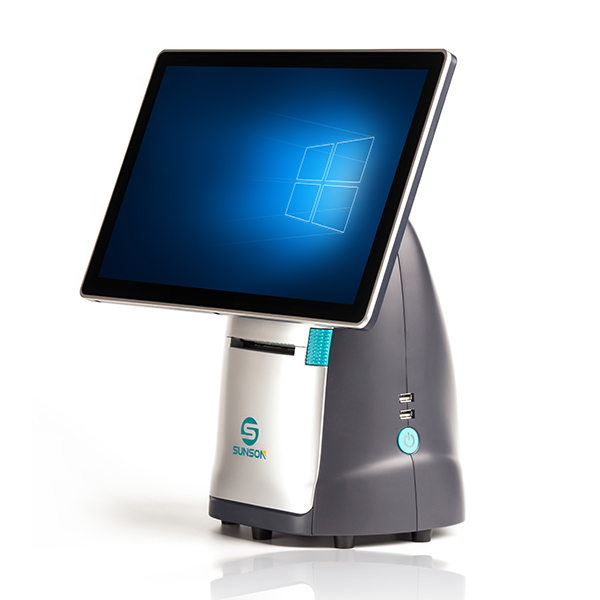

SP01A Touch Screen POS

SP01A Touch Screen POS

  • All-in-one integrated design

  • OS chosen freely

  • Built-in 80mm high speed thermal printer

  • Face-scanning payment with HD camera

  • Multiple interfaces configuration

  • Built-in 2D scanning module


1.  All-in-one integrated design, modular product design

2.  Windows or Android OS chosen freely, creating a unique interactive experience for you

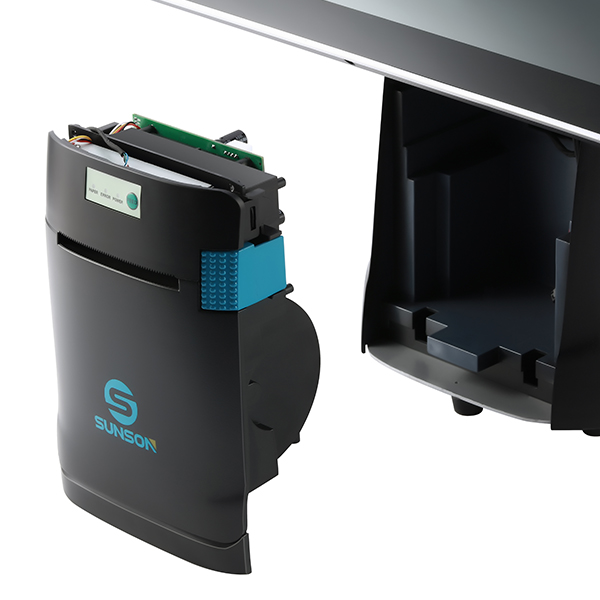

3.  Built-in drawer-type structure 80mm high speed printer with auto cutter, break down the tradition and bring forth the fresh

4.  Face-scanning payment with HD camera, market leading & discerning

5.  Multiple interfaces configuration,meet your usage needs

6.  Built-in 2D scanning module, easy for cashier, convenient and efficient

Item # SP01A
Mother Board Industrial grade motherboard J1800 (Upgrade optional for J1900 / i3 / i5 )
CPU Intel celeron J1800 dual-core 2.41GHZ (Upgrade optional for CPU J1900 / i3 / i5)
OS Android / Windows
Memory Android:   2G/4G/8G
 Windows: DDR3  2G/4G/8G
Hard Disk SSD 32GB/64GB/128GB/256GB
Touch Screen Capacitive touch screen
Display Screen Single screen,15.6 inch  LED
Customer Display LED 8 Digit / VFD 2*20
Resolution Ratio 1366*768 / 1920*1080
PrinterType Built-in 80mm thermal printer with auto cutter
Print Speed 300mm/s
Paper Width 80mm
Paper roll size 80×100mm
Color Black/White/Grey
ScanningOptionalBuilt-in 2D scanning modular
 Power Supply Input: 110-240VAC/50-60Hz/1.5A
 Output: 24V,4A
Interface 6×USB
 1× RJ45 LAN
 1×RS232 COM
 1×RJ11 Cash drawer port
 1×DC port
 1× Audio output
Work Environment 0~40
Storage Environment -20~60
Size L×W×H: 38.9×18×41.5cm
Weight 7.0KG
